Using CO:RE to Achieve Portable Tracee eBPF Code

One of the biggest challenges of eBPF development is distribution of your eBPF project. With so many different versions of the Linux kernel out in the wild, it seems like an impossible task to compile your eBPF program against all of them to ensure compatibility. However, by using CO:RE, a feature of libbpf, this gets quite a bit easier. In this blog, I’ll share our experience of addressing these challenges when developing Tracee, an open source runtime security and forensics tool for Linux, and the creative solutions we’ve come up with.

Let’s look at example eBPF code. In Linux version 4.18, to get the pid of a process within a PID namespace you would read fields in the following order:

task_struct->group_leader->pids[PIDTYPE_PID].pid->numbers[LEVEL].nr

but starting in kernel 4.19 this data was moved to:

task_struct->group_leader->thread_pid->numbers[LEVEL].nr

You don’t have to know what any of these fields are. They’re here to show that things change and it’s a lot to keep track of.

So, if relevant data structures change from kernel version to version, how do you handle this?

The fragile tedious way

Check out this snippet of code from Tracee:

#if (LINUX_VERSION_CODE < KERNEL_VERSION(4, 19, 0)
   // kernel 4.14-4.18:
   return READ_KERN(READ_KERN(group_leader->pids[PIDTYPE_PID].pid)
>numbers[level].nr);
#else
   // kernel 4.19 onwards, and CO:RE:
   struct pid *tpid = READ_KERN(group_leader->thread_pid);
   return READ_KERN(tpid->numbers[level].nr);
#endif
}

Here we have a simple example where we use macros we defined for checking kernel versions at runtime. This is somewhat effective but cumbersome to maintain.

Enter CO:RE (or ‘the better way’)

What if we could read from kernel data structures without having to worry about changes in their definitions? That is the promise of ‘CO:RE’, or ‘Compile Once, Run Everywhere’.

This works by replacing libbpf helper functions like bpf_probe_read which reads from kernel memory to the stack. Instead, you can use bpf_core_read. This helper uses offset relocation for source address using clang’s __builtin_preserve_access_index(). A simple explanation of how it works is that the helper uses kernel debug info (BTF) to find where kernel structure fields have been relocated to. For an actual in-depth explanation of how this works, check out Andrii Nakryiko’s blog post on the subject.

Adding this support to Tracee

One of the goals of Tracee is to support major distributions such as RHEL, CentOS, Fedora, Ubuntu, and Debian. Not every current release of each of these distributions supports CO:RE out of the box. The RHEL based distributions have BTF support back ported all the way back to kernel 4.18. At the time of writing this, Ubuntu and Debian BTF support exists in latest releases only.

The takeaway from this is that we need to support both CO:RE and non-CO:RE version of Tracee. The rest of this blog post is a write up of how we did just that.

vmlinux.h

The first thing we needed to do was generate a vmlinux.h file. It contains all the kernel data structure definitions of a particular kernel. We generated a single vmlinux.h file and committed it to source control. All the kernel data structure accesses in Tracee bpf code use those definitions.

Updating our kernel-read macro

Tracee defines a custom macro for reading data structures named READ_KERN. You can see it used above. Before recent CO:RE changes, its definition looked like this:

#define READ_KERN(ptr) ({ typeof(ptr) _val;     \
   __builtin_memset(&_val, 0, sizeof(_val));    \
   bpf_probe_read(&_val, sizeof(_val), &ptr);   \
   _val;       \
   })

All the CO:RE changes did was change bpf_probe_read to bpf_core_read:

#ifndef CORE
#define READ_KERN(ptr) ({ typeof(ptr) _val;     \
   __builtin_memset(&_val, 0, sizeof(_val));    \
   bpf_probe_read(&_val, sizeof(_val), &ptr);   \
   _val;     \
   })
#else
#define READ_KERN(ptr) ({ typeof(ptr) _val;   \
   __builtin_memset(&_val, 0, sizeof(_val));  \
   bpf_core_read(&_val, sizeof(_val), &ptr);  \
   _val;     \
   })
#endif

You can see that we use a compile time variable called “CORE”. That’s passed via clang using -DCORE. You can use bpf_core_read directly or even better yet BPF_CORE_READ/BPF_CORE_READ_INTO from libbpf.

One important thing to note is that, as a result of this change, we had to un-nest successive calls of READ_KERN. Under the hood bpf_core_read() applies the clang function __builtin_preserve_access_index() which causes the compiler to describe type and relocation information. You cannot nest calls to __builtin_preserve_access_index() so we ended up with changes like this:

static __always_inline u32 get_mnt_ns_id(struct nsproxy *ns)
{
   return READ_KERN(READ_KERN(ns->mnt_ns)->ns.inum);
}

turned into:

static __always_inline u32 get_mnt_ns_id(struct nsproxy *ns)
{
   struct mnt_namespace* mntns = READ_KERN(ns->mnt_ns);
   return READ_KERN(mntns->ns.inum);
}

Missing definitions header

The generated vmlinux.h does not contain the macros or functions that you’d find in system header files. For example, we want to use TASK_COMM_LEN which is found in linux/sched.h. Another example is the function inet_sk from net/inet_sock.h.

I had a conversation on the mailing list asking how to handle this. The unfortunate reality is that we have to maintain a header file where we redefine macros and functions that Tracee relies on.

Hopefully, something like the __builtin_is_type_defined suggested in that thread list can be implemented in clang but until then a missing macros header is the way.

For more information on this, refer to my vmlinux.h blog post.

Verifier complaints

There were a few verifier issues that we ran into which blocked us for some time. The bpf verifier output is decipher but that’s nothing unique to CO:RE.

Take another look at our definition of the READ_KERN function macro:

#define READ_KERN(ptr) ({ typeof(ptr) _val;    \
   __builtin_memset(&_val, 0, sizeof(_val));  \
   bpf_core_read(&_val, sizeof(_val), &ptr);  \
   _val;     \
   })

Notice how every time READ_KERN is called, another variable is allocated. In loops that get unrolled, there’s no optimization to reuse the same variable. As a result, it’s very easy to exceed the 512 byte stack limit. The strange thing is that the bpf_probe_read version of READ_KERN did not cause the stack limit to be exceeded, but bpf_core_read did. I never confirmed what causes this, but I assume it has to do with stack spillage as a result of the relocation code. We mitigated this by optimizing loops to reuse variables that are defined before the loop starts.

Note that this same performance hit applies if using BPF_CORE_READ/BPF_PROBE_READ as the definition is similar to READ_KERN.

Distribution

The CO:RE version of Tracee can be compiled in any environment, regardless of if BTF is enabled in its kernel. This is because we version controlled the vmlinux.h file. As a result, the CO:RE enabled bpf object is always built with Tracee. When the user space Go code is compiled, we embed this bpf object using Go’s embed directive. At runtime, Tracee detects if BTF (and therefore CO:RE) is supported, in which case it runs the CO:RE object. Otherwise, it looks for a kernel specific bpf object, or attempts to build one.

It works!

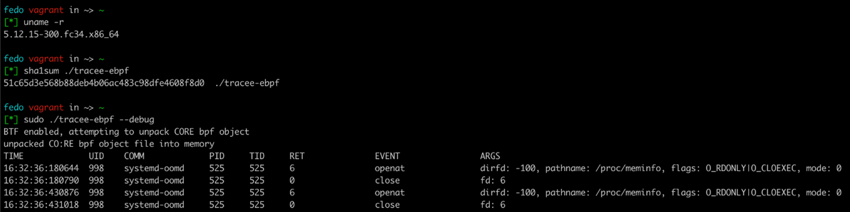

Here we can see the same CO:RE enabled BPF object file running perfectly on a 5.12 kernel, and a 4.18 one!

Picture1-4

Picture2-2

Now thanks to CO:RE you can download any release of Tracee after v0.6.0 and run it on any Linux machine without worrying about compatibility. For us, developers of Tracee, this added flexibility means spending less time worrying about differences in Linux versions and more time adding new features, improving the performance and stability of Tracee. So please give this new feature a try and look out for our future releases!

Tracee

This post first appeared on Grant Seltzer’s blog.


Picture of Grant Seltzer

Grant Seltzer

Grant is an Open Source Engineer at Aqua. He works on Tracee, Aqua's open source runtime security and forensics project that is built upon eBPF.  Outside of software, he enjoys exploring the great outdoors for hiking, camping, and mushroom foraging. He is based in Brooklyn, New York.
